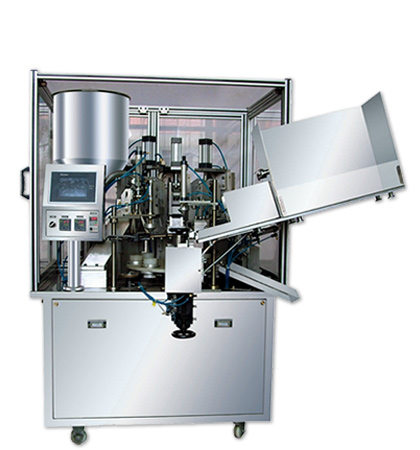

B.GF-401 Tube Filling & Sealing Machine

B.GF-401 Tube Filling & Sealing Machinery

Machine Detail/Specification

This machine is used for filling all kinds of fluid materials into the soft plastic tubes or plastic-aluminum laminated tubes, sealing and cutting the end of the tubes, and pressing date or series numbers on the end. It is widely used in daily chemical, pharmaceutics, food and chemical industries.

Characteristics: It is a kind of PLC program-control machine that is universal and multifunctional. The sealed end is firm and good-looking. The filling nozzles in different specifications are provided for materials in different thickness.

Power Supply 380(220)V/50Hz
Power 2.2kw
Air Consumption ≤0.6/min
Filling Volume 10-50ml | 50-100ml | 100-200ml
Volume Precision ≤±5%      | ≤±3%        | ≤±2%
Productivity 20―30 pcs/min
Tube Diameter Φ16―Φ50mm
Dimension(L×W×H) 1600x1150x1500mm
Weight 400kg
For Order or Inquiry:  Contact us
