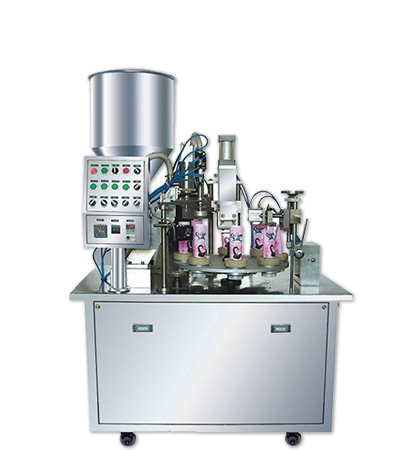

B.GFN-30 Inner-Heating Filling and Sealing Machine

B.GFN-30 Inner-Heating Filling and Sealing Machine

Machine Detail/Specification

The machine can automatically feed tube, orientate eye marks and is used for filling cream (paste)-like and liquid-like materials into plastic tube or plastic-aluminium laminated tube and then sealing them, pressing data or product numbers on the end of the tube and cutting the end. This machine is widely used in daily cosmetics, medicine and food industries.

A high efficient heater and a stable flow meter imported from Germany are applied. They provide a reliable thermo-air heating system, which makes the seal firm and high efficient. The filling heads in different specifications are prepared for materials in different thickness.

Power Supply 380(220)V/50Hz
Power 4.2kw
Air Consumption ≤0.6/min
Filling Volume 10-50ml | 50-100ml | 100-200ml
Volume Precision ≤±5%      | ≤±3%        | ≤±2%
Productivity 25―30 pcs/min
Tube Diameter Φ16―Φ50mm
Dimension(L×W×H) 1100x790x1500mm
Weight 260kg
For Order or Inquiry:  Contact us
