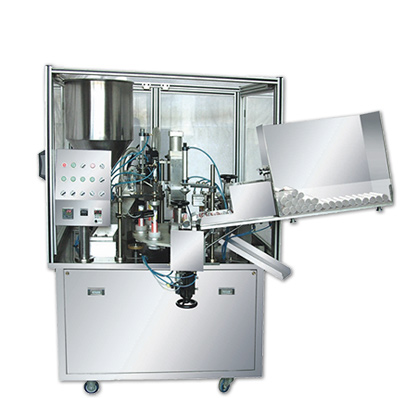

B.GFN-301 Inner-Heating Filling & Sealing Machine
detail.jpg)
Machine Detail/Specification
The machine can automatically orientate eye marks, filling, sealing, pressing date and cutting the end. This machine is widely used in daily cosmetic, medicine and food industries.
A reliable thermo-air heating system composes of high efficient heater and stable flow meter imported from Germany are applied. It adopts touch screen, PLC control, auto tube feeding and positioning. The seal is firm and high efficient. The filling heads in different specifications are prepared for materials in different thickness.
Power Supply | 380(220)V/50Hz |
Air Supply | 0.6-0.8MPa |
Air Consumption | <0.6m3/min |
Filling Quantity | 10-50ml | 50-100ml | 100-200ml |
Volume Precision | ≤±5% | ≤±3% | ≤±2% |
Productivity | 25―30 pcs/min |
Tube Diameter | Φ16―Φ50mm |
Dimension(L×W×H) | 1600x1090x1500mm |
Weight | 300kg |
